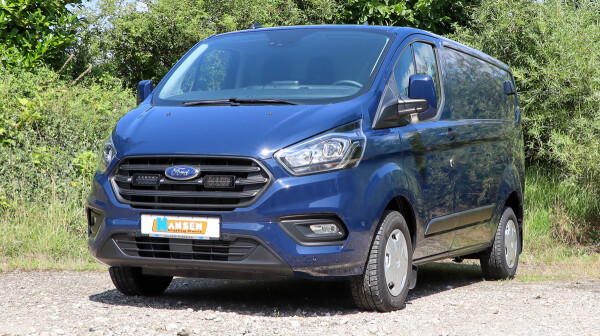

Euralight LED driving light grille kit fitting Ford Transit Custom 2018-2023

Euralight LED driving light grille kit – Ford Transit Custom 2018-2023

The Euralight grille kit integrates powerful LED driving lights neatly into the original radiator grille of your Ford Transit Custom 2018-2023. The vehicle-specific brackets ensure an exact fit and a clean front end – no additional bull bar required.

Product benefits & highlights:

• Perfect integration: vehicle-specific brackets made of PA6-CF (3D printed), UV and weather resistant, paintable, adjustable in angle and tilt.
• Road legal: LED driving lights approved to ECE R148 / R149 – no registration needed in E-mode.
• Two light modes: E-mode for road use, Super-Bright mode for off-road use (see explanation below).
• Position light: switchable between white (road) and amber (off-road).
• Plug & play: wiring harness with relay, fuse and switches.

E-mode vs. Super-Bright mode – what is the difference?

The Euralight BLACK PENTA lights have two light modes that you switch between using the supplied switch:

• E-mode (road): the light runs at the output it is approved for under ECE R149 (approx. 1,640 lumens, range approx. 309 m at 1 lux). Mounted as a pair, it may be used on public roads in addition to your high beam – no entry in the vehicle registration documents required. The approval marks are on the lens.
• Super-Bright mode (off-road): full output – considerably brighter with a longer range (approx. 3,440 lumens, range approx. 453 m at 1 lux). This mode is not approved for public roads and may only be used off public roads, e.g. off-road.
• White / amber position light: independently of the light mode, the integrated position light can be switched: white is permitted on the road, amber only for off-road use.

Technical data & scope of delivery:

• 2x Euralight 8" BLACK PENTA LED driving lights
• 4x grille brackets (vehicle-specific)
• 1x Euralight wiring harness incl. mounting hardware
• Voltage: 12–30 V, power: 60 W
• Range (1 lux, E-mode): approx. 309 m
• Protection class: IP68 / IP69K, housing: aluminium

Note: Only suitable for vehicles with the original radiator grille. Please check your vehicle version before ordering.
